A universal power meter for single, split and 3-phase applications
Includes
(1) Trumeter APM-PWR-APO Positive LCD
(3) Current Transformers
(1) Fuse Block 3 Pole with indicator
(1) Fuse Block 1 Pole with indicator
(3) 10 Amp Fuses
(1) 1/2 Amp Fuse
(3) 3 Level Terminal Blocks
This panel-mounted power meter is designed for use on mains circuits, potential transformers and current transformers. Its multi-measurement capability of active and reactive power makes it ideal for a wide range of power monitoring applications and one of the most flexible power meters for electrical monitoring.
Benefits include:
Works with potential and current transformers
Modbus RTU included
4 alarm set points
Specifications
APM Input 0 – 10,000KA via CT, 0 – 300V AC, 0 – 600V AC, 50 – 60Hz
Networks
IP2W, IP3W, 3P3W, 3P4W
Temperature Operating: -20 – 50°C, Storage: -40 – 70°C
Power Supply Input: 100 – 240 VAC, Supply Frequency: 50 – 60Hz, Max Power: 2W
Outputs
Max Sink Current: 15mA, Max Voltage: 24VDC, Output 1: Digital (opto-isolated), Output 2: Digital (opto-isolated), Output 3: Analog (4 – 20mA)
Communication Includes Modbus RTU
Dimensions
Overall: 72mm x 72mm x 74mm, Screen: 57mm x 44.7mm
Backlight Colors

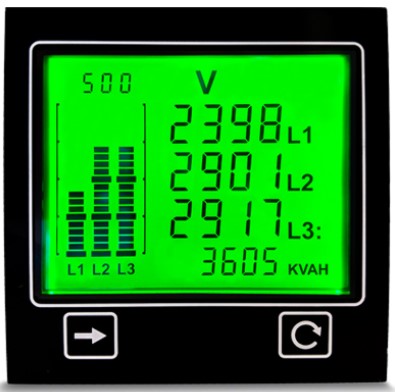

Green, Red, White
Accuracy 1.0%
Certifications
CE, cUL, IP65, NEMA 4 & 12, ROHS, UL
|
|
